Real-Time, Ad-hoc Stream Processing with OpenAI and SwimOS

Introduction

In modern applications, the need for real-time data processing is ever-growing, particularly in domains like finance, IoT, and large-scale monitoring. Integrating Generative AI with real-time stream processing offers an innovative approach to managing complex workflows, enabling dynamic generation, validation, and execution of stream operators based on natural language inputs.

In this blog post, we will walk through an exciting system that leverages OpenAI’s Generative AI capabilities for the automatic creation of stream processing operators, powered by SwimOS, a platform for building real-time, streaming data applications. This integration enables dynamic, on-the-fly operations that simplify managing complex, evolving streams of data. We’ll dive into the architecture, the underlying Python code, and the complete workflow.

Stock Demo Application

To demonstrate the power of integrating Generative AI with real-time stream processing, this blog will focus on a stock feed application that delivers real-time data streams. The application provides two versions of stock data: a live feed and a simulated feed. These feeds serve as the data source for the ad-hoc stream operators we’ll be creating and running using SwimOS and OpenAI.

We can programmatically explore this data using the SwimOS command line tool:

To install: npm install-g @swim/cli

You can query a real stock as follows:

swim-cli get -h wss://stocks-live.nstream-demo.io -n /stock/NVDA -l status
{timestamp:1726160502,price:119.4788,volume:227185179,bid:,ask:,movement:2.197}

Or, for simulated stocks:

swim-cli get -h wss://stocks-simulated.nstream-demo.io -n /stock/AAAA -l status
{timestamp:1726160485892,price:98.99,volume:14533679.137907563,bid:55.88,ask:27.49,movement:80.09}

This simulated data allows developers to test and experiment with stream operators in a controlled environment without requiring access to live market data.

Application Scope

The stock demo app focuses exclusively on real-time stock data streaming. It does not offer additional stock-related features, such as historical data or market analytics. Instead, the app’s simplicity is key to understanding how ad-hoc stream operators can be added externally, via SwimOS, to enhance and extend functionality. This blog will demonstrate how you can dynamically apply custom processing logic to these streams—whether live or simulated—using OpenAI to generate code on the fly.

Setting the Stage

Before we get into the technical depth, let’s first understand the broader architecture and how OpenAI and SwimOS work together. Here’s the high-level system flow:

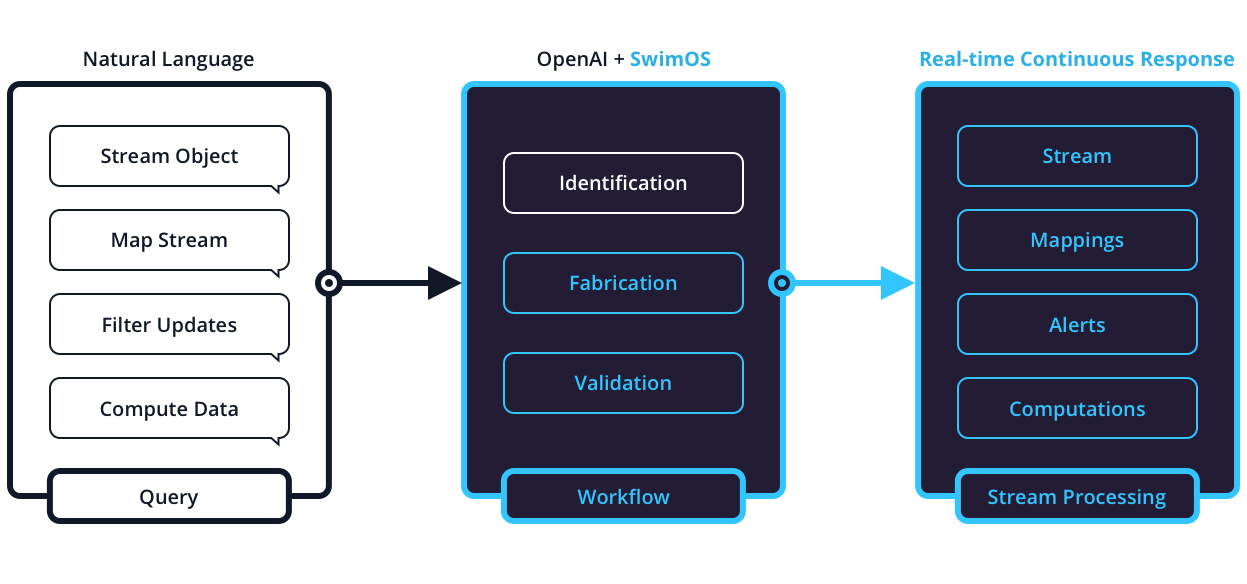

High-Level Architecture

This diagram represents the overall workflow, showing how natural language queries translate into real-time stream operations. The process involves three key stages:

  1. Natural Language Query: Users issue commands.
  2. OpenAI + SwimOS Workflow: The core of the system where the query is processed.
  3. Real-time Continuous Response: The results of the stream processing are sent back to the user.

Core Functionality – Fabrication Stage

At the heart of the system lies the OpenAI + SwimOS Workflow Stage, where OpenAI generates code that SwimOS integrates into its streaming architecture. In the previous diagram, Workflow was highlighted to emphasize its importance as the core functionality.

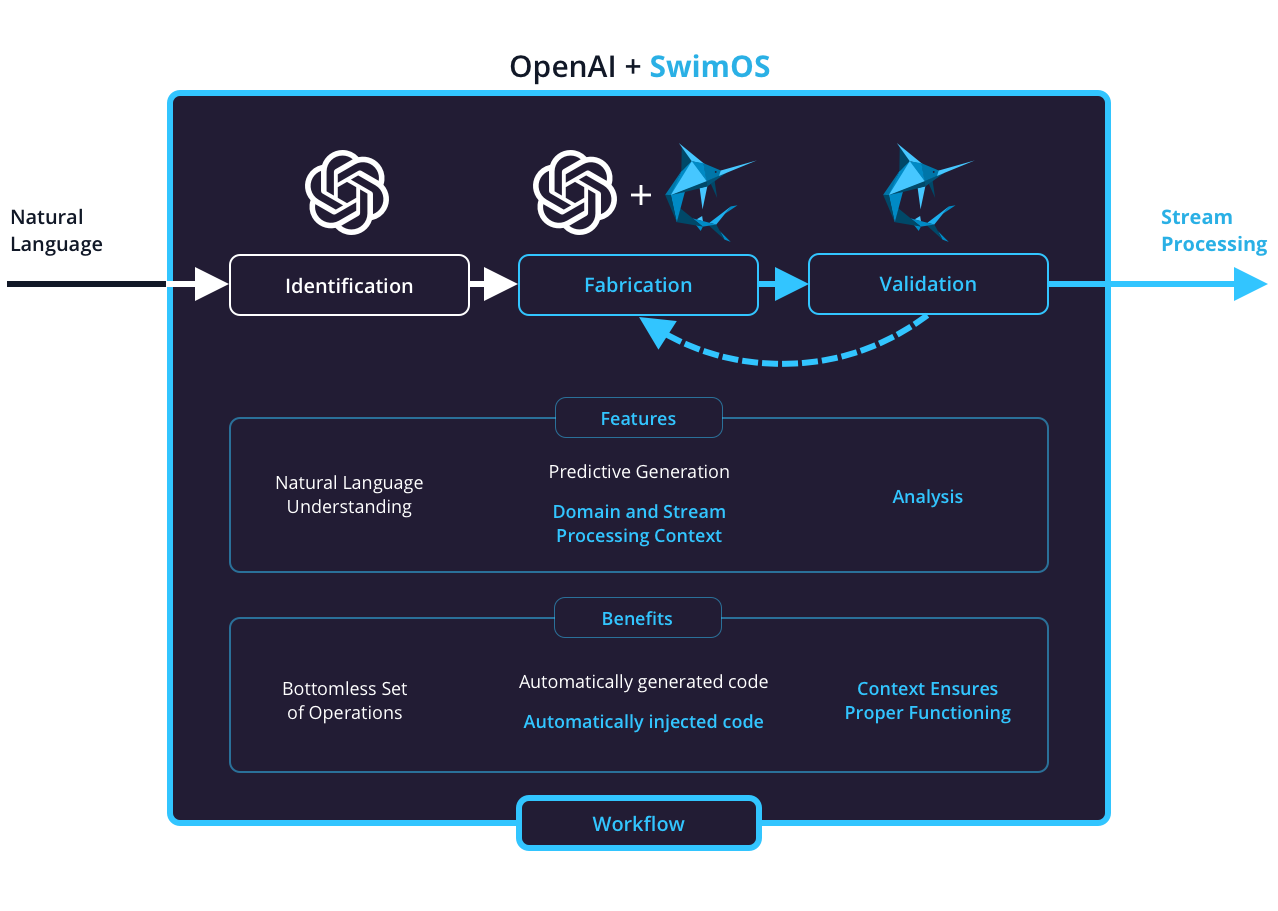

OpenAI + SwimOS Workflow Breakdown

Here’s a breakdown of each stage:

  1. Identification: This is handled by OpenAI’s NLU (Natural Language Understanding), which interprets user queries and identifies the required stream operator.
  2. Fabrication: OpenAI generates the Python code for the required operator (e.g., to map, filter, or accumulate data). SwimOS contextualizes this code within the streaming framework. This is the core stage where OpenAI and SwimOS collaborate.
  3. Validation: SwimOS checks whether the generated code is valid for the current streaming architecture. If validation fails, the system flows back to Fabrication for code adjustment.

When validation succeeds, the stream operator is integrated, and the system processes real-time data accordingly. If validation fails, it loops back to Fabrication, where the operator is regenerated or modified.

Key Python Code for Operator Generation

Let’s now dive into the technical implementation. Below is a snippet of the code responsible for generating one form of stream operator using OpenAI’s generative capabilities and SwimOS’s ability to validate domain and stream processing context.

@app.command()
def accumulate_generate(symbol: str, streaming_operator: str, operation_config: str = typer.Option("{}")):
    global acc
    acc = {}

    # Parse the operation_config JSON string
    current_operation_config = json.loads(operation_config)
    parameters = json.dumps(current_operation_config)

    prompt = f"""
    Return a JSON result, and only a JSON result. The JSON must have a single top-level key: `result`.
    The JSON should contain a Python function with the signature:
    `def func(acc: dict, new_value: float, params: dict):`
    The function should compute {streaming_operator} on `new_value` and update `acc` based on each new value.
    """

    function_code_str = generate_llm_code(prompt, expect_json=True)

    # Evaluate the function code
    local_vars = {}
    exec(function_code_str, {}, local_vars)
    func = local_vars["func"]

    def accumulate_generate_callback(new_value: dict, _old_value: dict):
        global acc
        acc, summary = func(acc, new_value['price'], current_operation_config)
        print(f"{symbol} -- summary: {summary}; acc: {acc}")

    node_uri = f"/stock/{symbol}"
    value_downlink = setup_value_downlink(node_uri, accumulate_generate_callback)

Breakdown

This dynamic generation process allows users to customize stream operators on the fly, creating immense flexibility in real-time data processing scenarios.

Error Handling and the Conditional Loop

A key part of the system is the Validation stage. If the operator generated by OpenAI fails during validation in SwimOS, the system loops back to Fabrication to adjust the operator. This loop ensures that the system can handle unexpected conditions, regenerate the operator if necessary, and continue functioning without disruption.

Code Handling Retries:

def generate_llm_code_for_execute(prompt: str, max_retries: int = 5, retry_delay: int = 1):
    retries = 0
    while retries < max_retries:
        try:
            response = llm_client.chat.completions.create(
                messages=[{"role": "user", "content": prompt}],
                model="gpt-4",
                max_tokens=1000
            )
            response_content = response.choices[0].message.content.strip()
            json_match = re.search(r'\{.*\}', response_content, re.DOTALL)
            if json_match:
                result = json.loads(json_match.group(0))
                return result
        except Exception as e:
            retries += 1
            time.sleep(retry_delay)

This retry mechanism ensures that the system robustly handles edge cases, such as invalid code generation or network issues, by making multiple attempts before failing.

The Full Workflow in Action

Let’s walk through an example to see this system in action:

  1. The user issues a query: “accumulate the average stock prices for symbol XYZ.”
  2. OpenAI identifies the task and generates the Python function to accumulate averages.
  3. SwimOS integrates the operator, validates it, and begins processing real-time stock prices, calculating averages on the fly.
  4. If validation fails, SwimOS loops back to OpenAI, regenerates the operator, and continues processing.

This process, powered by AI-driven operator generation and real-time validation, unlocks powerful new ways of managing and interacting with streaming data.

Conclusion

The integration of OpenAI with SwimOS brings power and flexibility to real-time stream processing. By automating the generation of custom stream operators using natural language inputs, this approach simplifies complex workflows while enabling powerful dynamic responses. Whether it’s filtering, mapping, or accumulating data, this architecture offers a highly scalable solution for real-time data challenges.

Hopefully this post provided you with insight into how real-time stream processing can be enhanced with Generative AI. Stay tuned for more developments and deep dives into intersections of generative AI and real-time stream processing!
